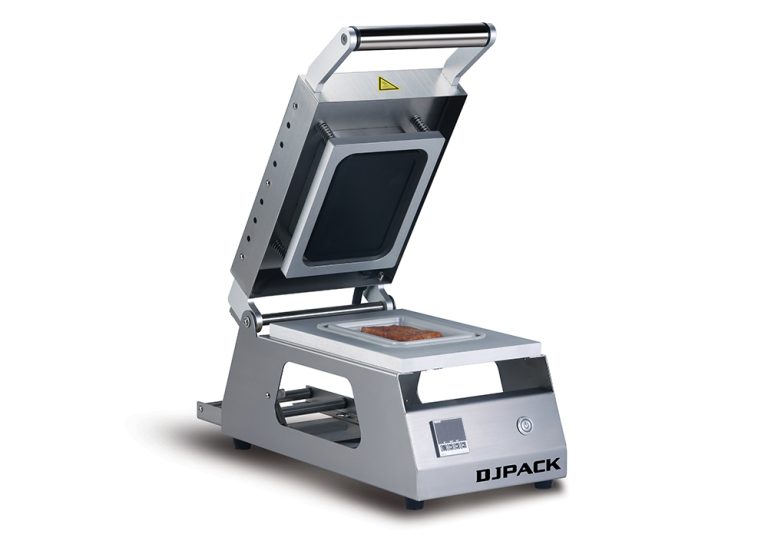

DS-2M manual type tray sealer which has compact designs, uses 304 stainless steel to meet the market that wants healthy, tasteful and convenient packaged in a hygienic, high-quality way. The machine have skillful craftsmanship at a great value for money, which are suitable for supermarkets, small kitchens and shops.
Different packaging machines apply to a different sites. Many family workshops do not need a large packaging machine, so the small one and put on the table becomes their first choice. Moreover, many customers prefer to purchase sealed food because sealed food can give them a signal that our food is cleaner and healthier.
It is a simple and affordable manual tray sealing machine suitable for food shops and small food processing workshops. As a household food manual tray sealer with roll film, it has a wide range of packing, including raw and cooked meat, seafood, dairy product, fruit and vegetable, rice, and flour food. What’s more, users need an excellent temperature controller to seal the tray with different temperatures. Electric heating is fully applied, which improves the sealing performance.
Different packaging machines apply to a different sites. Many family workshops do not need a large packaging machine, so the small one and put on the table becomes their first choice. Moreover, many customers prefer to purchase sealed food because sealed food can give them a signal that our food is cleaner and healthier.
It is a simple and affordable manual tray sealing machine suitable for food shops and small food processing workshops. As a household food manual tray sealer with roll film, it has a wide range of packing, including raw and cooked meat, seafood, dairy product, fruit and vegetable, rice, and flour food. What’s more, users need an excellent temperature controller to seal the tray with different temperatures. Electric heating is fully applied, which improves the sealing performance.
1. Stainless steel construction.
2. OMRON temperature control system.
3. Friendly and simple in operation for user.
4. Cut the film around tray completely.
5. Mould in customized dimension is available to be made according to your special tray.
| Modelo | DS-2M |
| Tray Dimensions(mm) | 240 × 150 × 100 |
| Max Width of Film(mm) | 180 |
| Max Diameter of Film(mm) | 160 |
| Packaging Speed(tray/min) | 7-8 |
| Electrical Requirement | 1P/220V/50HZ |
| Consume Power(kw) | 0.5 |
| N.W(kg) | 15 |
| G.W(kg) | 19 |
| Dimensiones de la máquina (mm) | 630 × 256 × 260 |
Die Plates Available Format
| Modelo | DS-4M |
| Max. Tray Dimension(mm) | 260×190×100 |
| Max. Width of Film(mm) | 220 |
| Max. Diameter of Film(mm) | 160 |
| Packing Speed(cycle/time) | 7-8 |
| Production Capacity(boxes/hour) | 480 |
| Electrical Requirement(V/Hz) | 220/50 & 110/60 |
| Consume Power(kw) | 0.7 |
| N.W(kg) | 20 |
| G.W(kg) | 23 |
| Machine Dimension(mm) | 540×296×250 |
| Shipping Dimension(mm) | 630×350×325 |
Die Plates Available Format
| Modelo | DS-6M |
| Max. Tray Dimension(mm) | 400×250×100 |
| Max. Width of Film(mm) | 430 |
| Max. Diameter of Film(mm) | 160 |
| Packing Speed(cycle/time) | 7-8 |
| Production Capacity(boxes/hour) | 480 |
| Electrical Requirement(V/Hz) | 220/50 & 110/60 |
| Consume Power(kw) | 1 |
| N.W(kg) | 34 |
| G.W(kg) | 37 |
| Machine Dimension(mm) | 510×680×265 |
| Shipping Dimension(mm) | 640×680×310 |
Die Plates Available Format
