DJT-400G Map Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. Modified atmosphere packaging machine features quality assurance, keeping fresh, color retention, complexion preservation and taste retention.
DJT-450G Map Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food. Modified atmosphere packaging machine features quality assurance, keeping fresh, color retention, complexion preservation and taste retention.
1.Programmable control system.
2.Touch screen control panel.
3.304 stainless steel main construction.
4.Fault real time prompting function.
5.Mold is available to be changed and customized mold is acceptable.
DJT-400G/DJT-450G is an automatic MAP TRAY SEALER. It uses vacuum pump to suck the air out completely form the vacuum chamber, then fill the protective gas mix, which is suitable for keeping food fresh. With the same pressure outside and inside of the vacuum chamber it starts sealing. Modified Atmosphere highly exchanged. Meanwhile, gas mixer assures the atmosphere strictly mixed. Supply chain efficiencies: Put the filled tray into the mould and turn the start button on, the mould moves into the vacuum chamber, vacuum suction, gas flushed, sealing, film cutting, the mould moves out automatically. (Tray goes upward after the mould moves out, the speed of upward can be adjusted. )
| Model | DJT-400G |  |

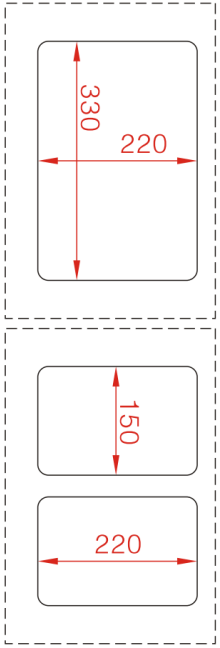

| Max. Tray Dimension(mm) | 330×220×70 (x1) | |
| Max. Width of Film(mm) | 390 | |
| Max. Diameter of Film(mm) | 220 | |
| Packing Speed(cycle/min) | 4-5 | |
| Air Exchanging Rate(%) | ≥99 | |
| Electrical Requirement(v/hz) | 220/50 110/60 | |
| Consume Power(kw) | 1.8 | |
| N.W(kg) | 92 | |
| G.W(kg) | 116 | |
| Machine Dimension(mm) | 690×850×750 | |
| Shipping Dimension(mm) | 750×900×850 |

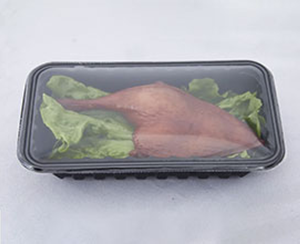

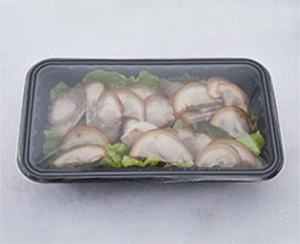

MAP Applications
 |
 |
 |
 |
| Model | DJT-450G |  |

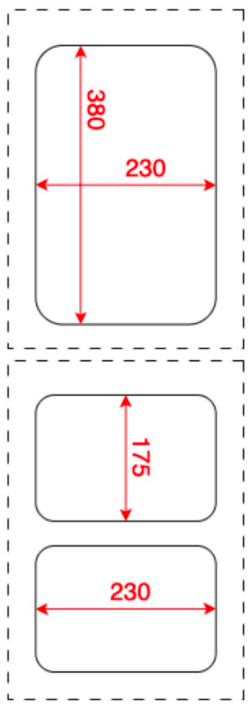

| Max. Tray Dimension(mm) | 380×230×70 (×1) 230×175×70 (×2) |
|
| Max. Width of Film(mm) | 440 | |
| Max. Diameter of Film(mm) | 220 | |
| Packing Speed(cycle/min) | 4-5 | |
| Air Exchanging Rate(%) | ≥99 | |
| Electrical Requirement(v/hz) | 220/50 110/60 | |
| Consume Power(kw) | 1.8 | |
| N.W(kg) | 100 | |
| G.W(kg) | 120 | |
| Machine Dimension(mm) | 690×875×750 | |
| Shipping Dimension(mm) | 880×790×900 |

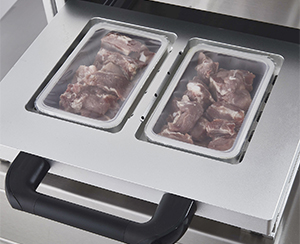

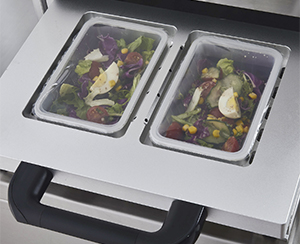

MAP Applications
 |
 |
|
|
