Automatic Rolling Type Vacuum Packaging Machine

Model

The Automatic Continuous Type Vacuum Packaging Machine uses a cylinder to drive the conveyor track to rotate continuously, suitable for product packaging in large-scale production enterprises. It can set one or two seals in the vacuum chamber according to different specifications of the packaging material to improve work efficiency. The angle of the equipment workbench can be adjusted according to the packaging requirements of the packaging materials.

DZ-1000QF automatic continuous type vacuum packaging machine continuously operates through the cylinder drive the rotation of the conveyor belt and applies to the product packaging of large productive enterprises. Depending on the different sizes of the contents, one or two sealers could be set within one vacuum chamber in order to improve the working efficiency. The workbench angle could be adjusted according to the features of the contents.

Chamber Dimension

385×1040×80(mm)

Sealer Dimension

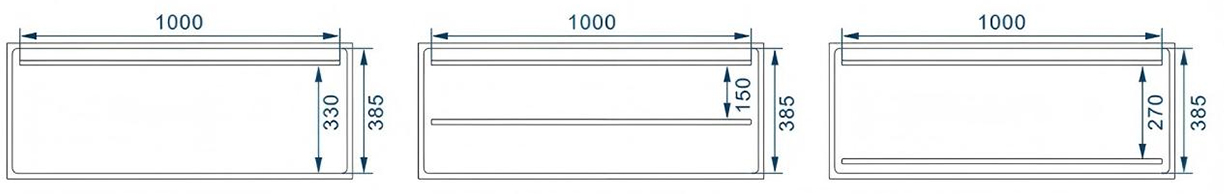

1000×8(mm)

Pump Capacity

100/200(m3/h)

Technical Characters

1.Control System: OMRON PLC programmable control system and human-computer interface touch screen.

2.Material of Main Structure: 304 stainless steel.

3.”V” Lid Gasket: The “V” shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.

4.Conveyor Belt: Dismountable conveyor belt is convenient for cleaning the machine.

5.Reversible Lid: The reversible lid is convenient for the maintenance person to replace the components inside the lid easily.

6.Heavy Duty Casters (With Brake): The heavy-duty casters (with brake) on the machine feature superior load bearing performance, so that the user may move the machine with ease.

7.Electrical requirements and plugs could be custom according to customer requirements.

DZ-1000QF

DZ-1000QF

Model	DZ-1000QF

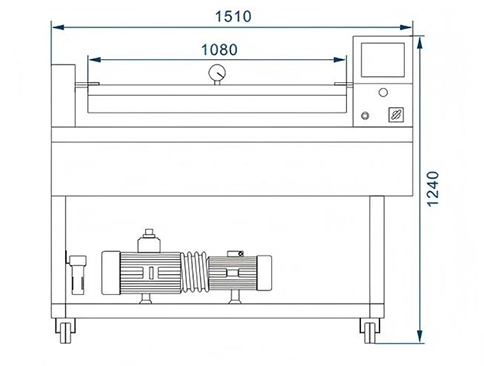

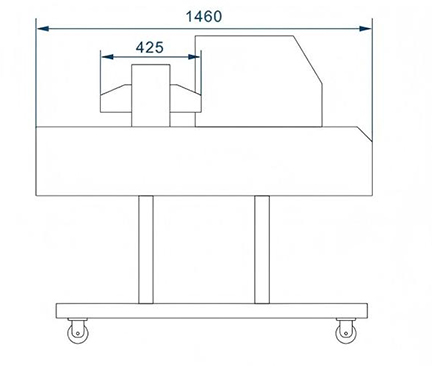

Machine Dimensions(mm)	1510 × 1410 × 1280
Chamber Dimension (mm)	385 × 1040 × 80
Sealer Dimension (mm)	1000 × 8
Pump Capacity(m3/h)	100/200
Power Consumption(kw)	3
Voltage(V)	220/380/415
Frequency(Hz)	50/60
Production Cycle(times/min)	2-3
G.W(kg)	555
N.W(kg)	447
Shipping Dimensions(mm)	1580 × 1530 × 1420

Vacuum Packaging Applications

Parameters

Related Products

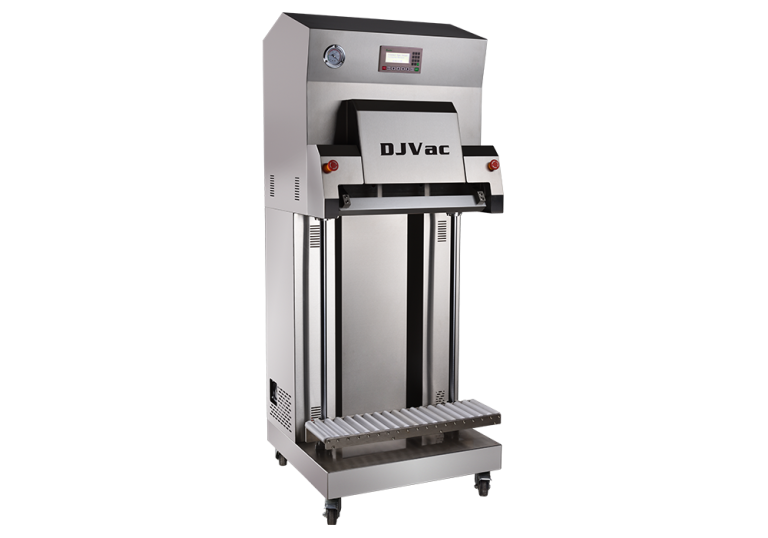

External Vertical Vacuum Packaging Machine

External vacuum packaging machine without vacuum chamber, optional: inflation option, gas filter, vacuum pump are all 20 pumps. DZQ-600L/S external vacuum packaging machine, microcomputer control system is used for precise and stable setting of all packing parameters. Long-term stable operating is possible for just one preset. The equipment has a function of vacuuming and filling inert gas and aroma for packing item fresh-keeping and prevent oxidation to achieve a purpose of long-term preservation and prevent volatilization of the aroma. The user may preset exhaust, gas filling and sealing process as required. The preset packing procedure can be completed by just touching the start button. The operation is very convenient. It's especially suitable for vacuum packing sealing of large packing bag, such as meat, grain, herbs and other food, medicines, chemicals, oxidation prevention of electronic products, and vacuum sealing of powder goods and other packing volume reducing materials. Machine equipped with droppable non-power conveyor, the lifting range could be set of 0-700mm according to different packing requirement, which is convenience for operation.

Manual Tabletop Vacuum Skin Packaging Machine

DJT-250VS vacuum skin packaging machine is mainly used for the package of cooked, fresh meat and sea food. Vacuum skin packaging extends shelf life, keeps flavors and ingredients at their freshest, optimizes product presentation is easy to use.

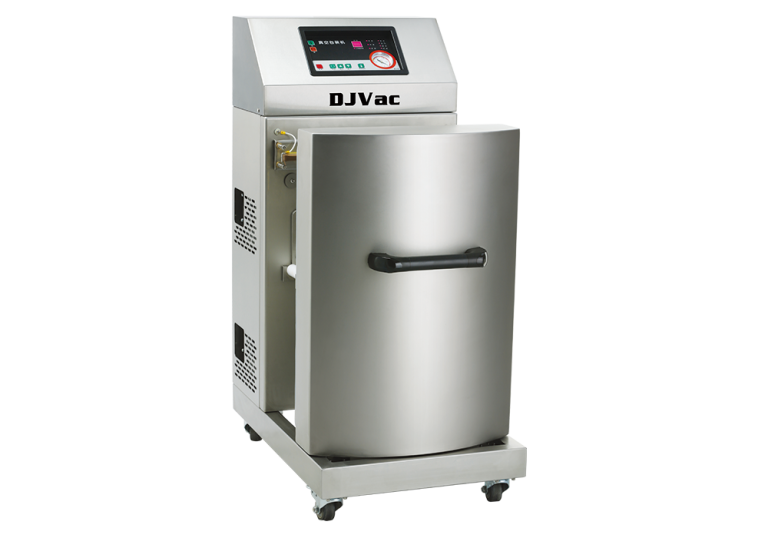

Heavy Duty Vertical Vacuum Packaging Machine

DZ-500L Vertical Type Vacuum Packaging Machines Series constructed of high-quality stainless steel. It's quick and easy packaging of smaller products, it's easy to operate, clean, and maintain. DZ-500L Vertical Type Vacuum Packaging Machines Series constructed of high-quality stainless steel. It's quick and easy packaging of smaller products, it's easy to operate, clean, and maintain.

Semi-Automatic Vertical MAP Tray Sealer

DJL-320V is an automatic MAP TRAY SEALER. It uses vacuum pump to suck the air out completely form the vacuum chamber, then fill the protective gas mix, which is suitable for keeping food fresh. With the same pressure outside and inside of the vacuum chamber it starts sealing. Modified Atmosphere highly exchanged. Meanwhile, gas mixer assures the atmosphere strictly mixed. Supply chain efficiencies: Put the filled tray into the mould and turn the start button on, the mould moves into the vacuum chamber, vacuum suction, gas flushed, sealing, film cutting, the mould moves out automatically. (Tray goes upward after the mould moves out, the speed of upward can be adjusted. ) The suffixes "G" and "V" indicate the gas displacement method used by the modified atmosphere packaging (MAP) machine. "G" stands for gas flushing (gas flow), and "V" stands for vacuum replacement.

HW-12 Hot Water Shrink Tank for Vacuum Packaging Machine-1

General Hot Water Shrink Tank

The shrink tank by Wenzhou Dajiang is a highly‑functional add‑on device. It serves as the perfect companion for chamber vacuum machines, matching them well in terms of operation and overall design. It's constructed of a high-quality stainless steel. The movement of the product support and the heating could be done with pneumatically or electrically which according to customer's requirement. The heavy duty casters (with brake) on the machine suitable for mobile use.

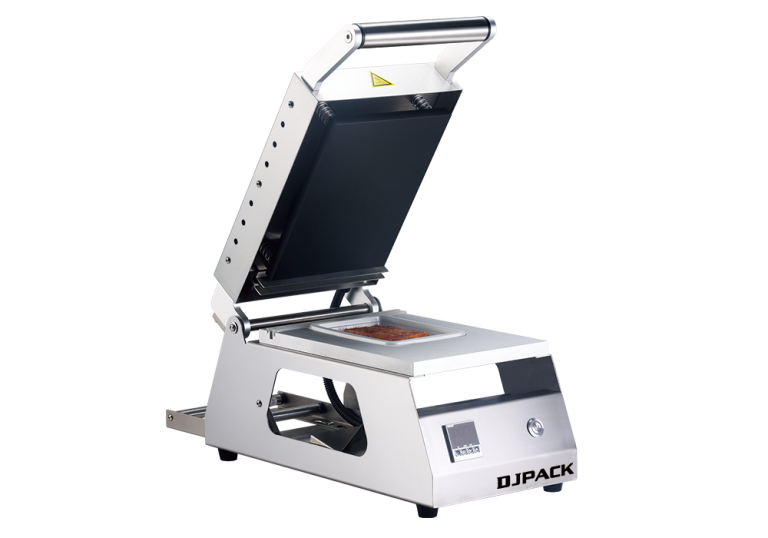

Manual Cross-Cut Tray Sealer
